Brick-Texture Finish Thermal Insulation Integrated Panel
Product Introduction

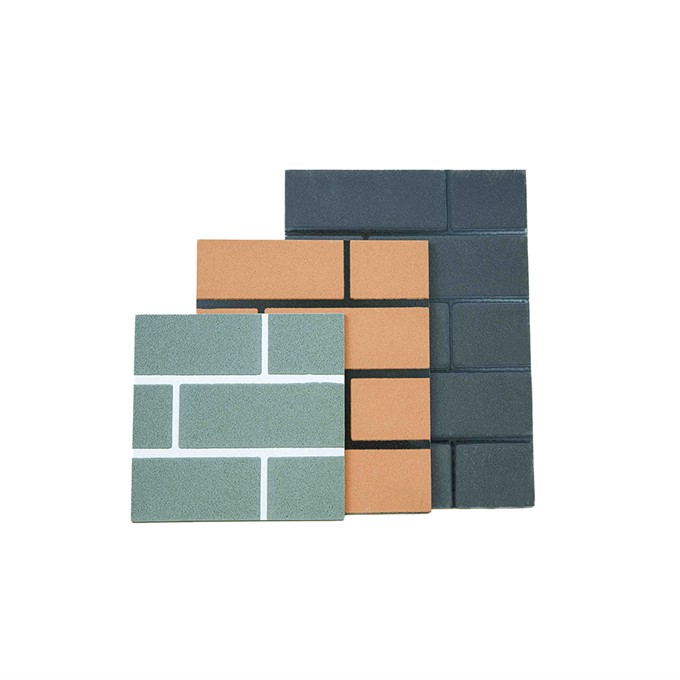

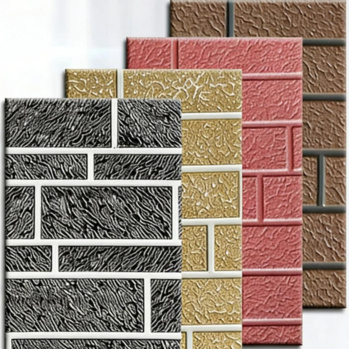

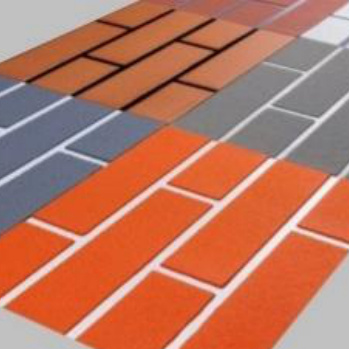

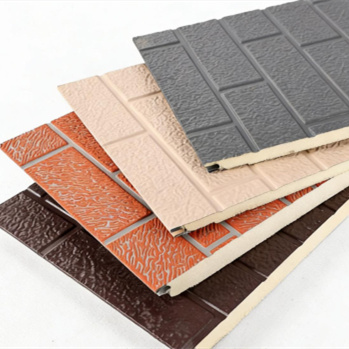

The Brick-Texture Finish Thermal Insulation Integrated Panel is a factory-fabricated exterior wall solution that combines a decorative brick-texture surface layer with an integrated thermal insulation core. The brick-texture finish authentically replicates the appearance of traditional brick masonry, providing rich color options and realistic visual effects. This all-in-one panel system streamlines construction by integrating decoration and insulation into a single product.
Product Specifications
| Parameter | Value |
|---|---|
| Standard Dimensions | 2440 × 1220 mm (custom sizes available) |
| Panel Weight | 8 ~ 13 kg/m² |
| Fire Rating | Class A, B1, B2 (depending on insulation core) |
Available Insulation Core Options
- XPS (Extruded Polystyrene)
- EPS (Expanded Polystyrene)
- Rock Wool
- Real Gold Panel
- Inorganic Non-Combustible Panel
- Graphite Polystyrene Board
Application Scope

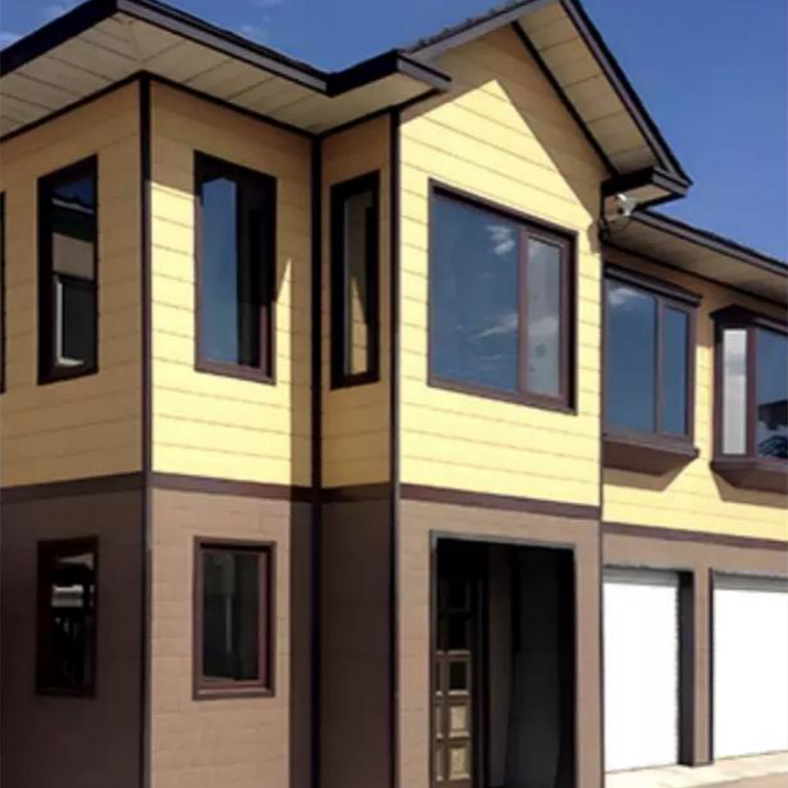

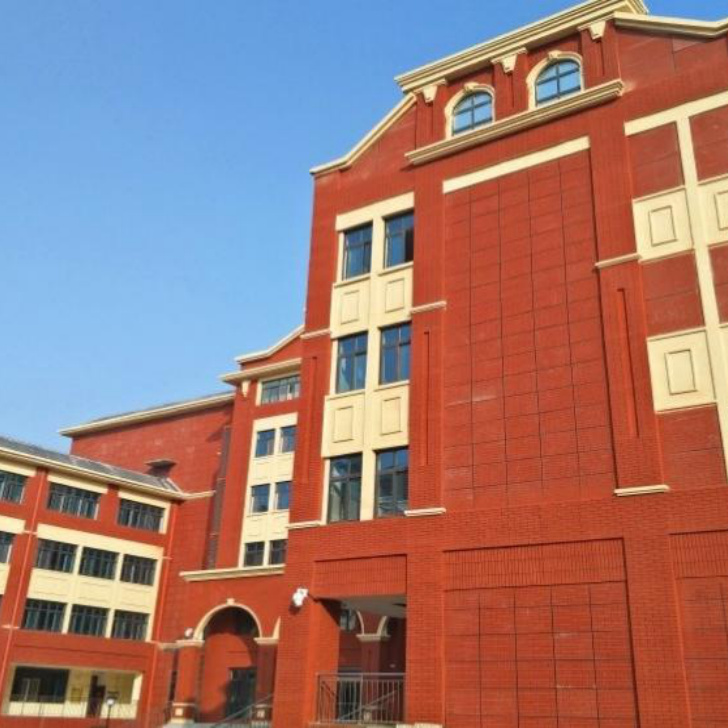

- Office buildings, hotels, apartments, and villas
- Various commercial and residential buildings
- Partition wall panels and suspended ceilings
- Temporary building facade decoration (guard houses, site offices)
- Suitable for both extreme heat and severe cold climate regions
Product Advantages
- Authentic Brick Appearance: Highly realistic brick texture with rich color variety
- Anti-Stain & Weather Resistant: Excellent resistance to staining and weathering
- Fireproof, Alkali-Resistant & Acid-Resistant: Superior chemical resistance, non-toxic and odorless
- Lightweight Structure: Thin profile and low self-weight reduce structural load
- Customizable: Brick surface design can be tailored to project specifications
- All-in-One System: Decoration and insulation integrated in a single panel
- Easy Installation: Factory-fabricated panels simplify on-site construction
Storage
- Store panels flat in a dry, level indoor area. Stack panels according to specifications on wooden pallets, with a maximum stack height of 1.5 meters.
- When panels of different sizes are stored together, place smaller panels on top of larger panels.
- For temporary outdoor storage, cover completely with waterproof tarpaulin to protect from rain and direct sunlight exposure.
Handling
- Panels must be carried by at least two people, holding the panel flat or vertically. Grip the long edges firmly with arms apart, walk steadily, and handle gently.
- Protect the corners and edges from impact. Do not drag panels across surfaces, as this may damage the panel surface.
- If temporarily leaning panels against a wall, do not tilt excessively to prevent panels from slipping and causing damage.
Cutting & Processing
- Always use proper protective equipment when cutting. Fiber cement boards are hard and dense — do not use ordinary woodworking saws. Use appropriate cutting equipment and blades, ensuring the panel is supported flat and secured before cutting from the front side.
- Use a hole saw for circular openings. For square openings, drill a small hole at each of the four corners with an electric drill first, then cut along the four sides to avoid stress cracking.
- For special installation areas such as door and window openings, use multiple square panels to form the required shape rather than cutting the shape directly from a single full board.
Cleaning & Maintenance
- Remove the protective film within 7 days after installation. Use a soft cloth with clean water or a neutral detergent to wipe and clean the surface.
- For stubborn stains such as marker pens or ballpoint pen marks, use alcohol or neutral cleaner on a clean cloth for wiping. Never use strong acids, strong alkalis, or corrosive cleaning agents on the panel surface.
Shipping & Packaging
- Products are packaged on pallets, suitable for long-distance transportation.
- Small-batch orders can be arranged for LTL (Less Than Truckload) freight shipping.
- Large-batch orders can be arranged for dedicated truckload logistics transportation.
