Inorganic Pre-Coated Board
Product Introduction
Inorganic Pre-Coated Board, also known as Medical Clean Board, uses 100% non-asbestos calcium silicate board as its base material. It is radiation-free and contains no harmful substances such as formaldehyde. The surface undergoes a special coating and UV light curing treatment, which not only enhances the board’s aesthetic appeal but also improves its durability and anti-pollution capabilities. It features excellent fire resistance, moisture resistance, and corrosion resistance, fully meeting modern green and environmental protection requirements.
Product Specifications
| Type | Length (mm) | Width (mm) | Thickness (mm) |
|---|---|---|---|
| Standard | 2440 | 1220 | 5, 6, 8, 10, 12 |
| Custom | 2440 ~ 3050 | 1220 | 5, 6, 8, 10, 12 |
Application Scope
Inorganic Pre-Coated Board is primarily used in environments with high fireproof, moisture-proof, and hygiene requirements:

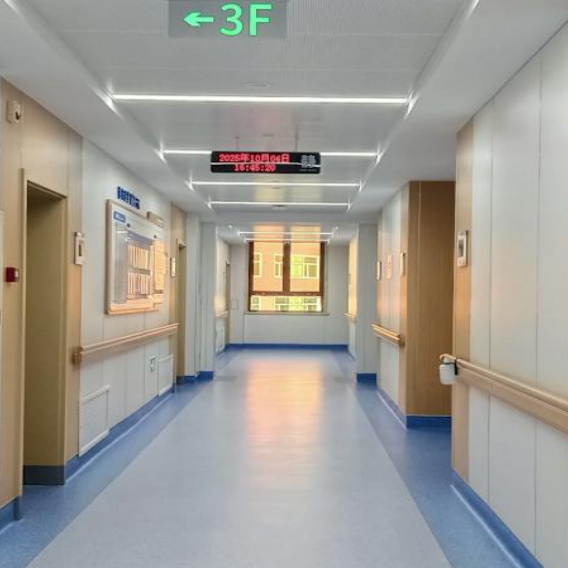

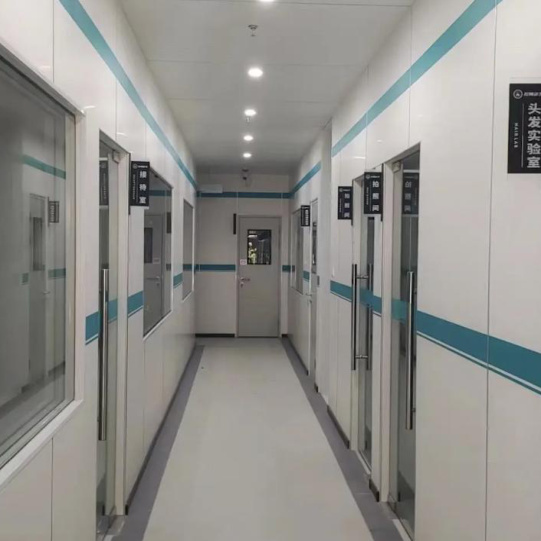

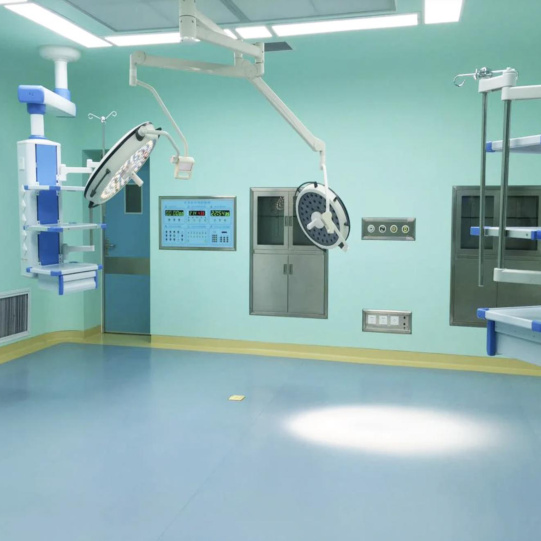

- Healthcare: Hospital clean rooms, operating rooms, ICU wards, corridors, and hallways

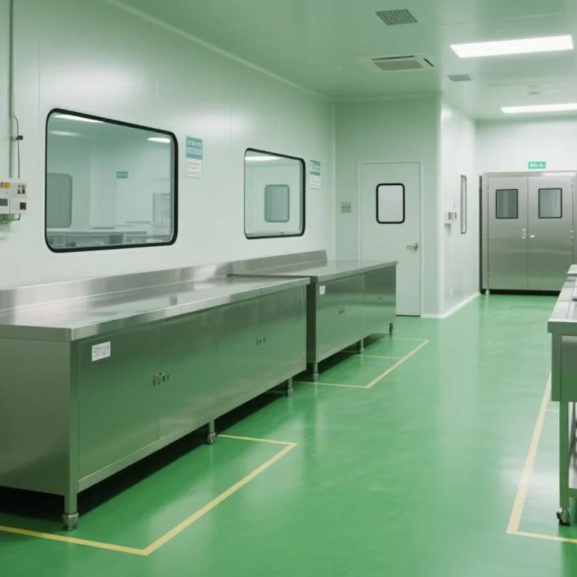

- Laboratories: Research labs and testing facilities
- Food Processing: Food factories and clean production workshops
- Education: Schools and educational facilities
- Commercial: Shopping malls, hotels
- Transportation: Railway stations and public transit hubs
Product Advantages
- Class A Fireproof: Excellent fire resistance for critical safety applications
- Medical-Grade Hygiene: Smooth, non-porous surface inhibits bacterial growth
- 100% Non-Asbestos: Safe and healthy, free from harmful substances
- Formaldehyde-Free: Zero formaldehyde emission, meeting strict indoor air quality standards
- Radiation-Free: Safe for use in sensitive medical and residential environments
- Anti-Pollution: UV-cured surface resists stains and contaminants
- Corrosion Resistant: Withstands exposure to chemical cleaning agents
- Moisture-Proof: Excellent performance in high-humidity environments
- Durable Finish: UV curing ensures long-lasting color and surface integrity
- Eco-Friendly: Fully compliant with green building material standards
Storage
- Store panels flat in a dry, level indoor area. Stack panels according to specifications on wooden pallets, with a maximum stack height of 1.5 meters.
- When panels of different sizes are stored together, place smaller panels on top of larger panels.
- For temporary outdoor storage, cover completely with waterproof tarpaulin to protect from rain and direct sunlight exposure.
Handling
- Panels must be carried by at least two people, holding the panel flat or vertically. Grip the long edges firmly with arms apart, walk steadily, and handle gently.
- Protect the corners and edges from impact. Do not drag panels across surfaces, as this may damage the panel surface.
- If temporarily leaning panels against a wall, do not tilt excessively to prevent panels from slipping and causing damage.
Cutting & Processing
- Always use proper protective equipment when cutting. Fiber cement boards are hard and dense — do not use ordinary woodworking saws. Use appropriate cutting equipment and blades, ensuring the panel is supported flat and secured before cutting from the front side.
- Use a hole saw for circular openings. For square openings, drill a small hole at each of the four corners with an electric drill first, then cut along the four sides to avoid stress cracking.
- For special installation areas such as door and window openings, use multiple square panels to form the required shape rather than cutting the shape directly from a single full board.
Cleaning & Maintenance
- Remove the protective film within 7 days after installation. Use a soft cloth with clean water or a neutral detergent to wipe and clean the surface.
- For stubborn stains such as marker pens or ballpoint pen marks, use alcohol or neutral cleaner on a clean cloth for wiping. Never use strong acids, strong alkalis, or corrosive cleaning agents on the panel surface.
Shipping & Packaging
- Products are packaged on pallets, suitable for long-distance transportation.
- Small-batch orders can be arranged for LTL (Less Than Truckload) freight shipping.
- Large-batch orders can be arranged for dedicated truckload logistics transportation.
