Metallic Fluorocarbon Paint Thermal Insulation Integrated Panel
Product Introduction

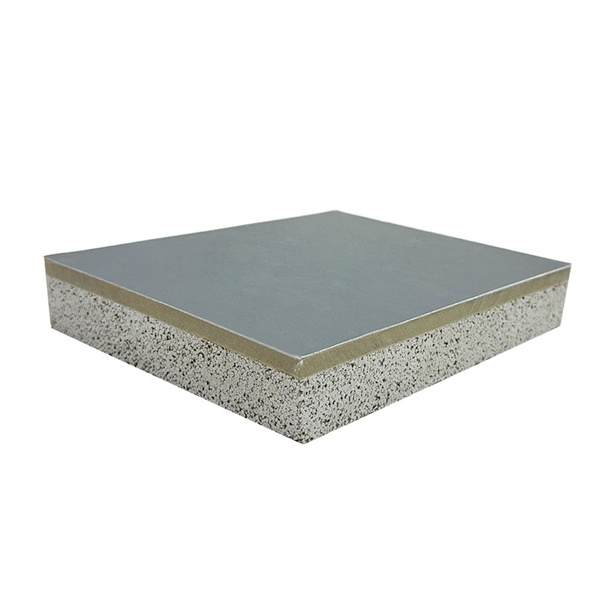

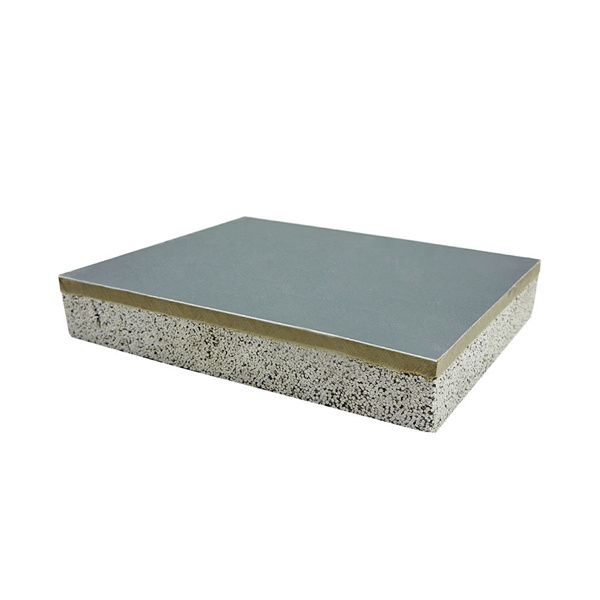

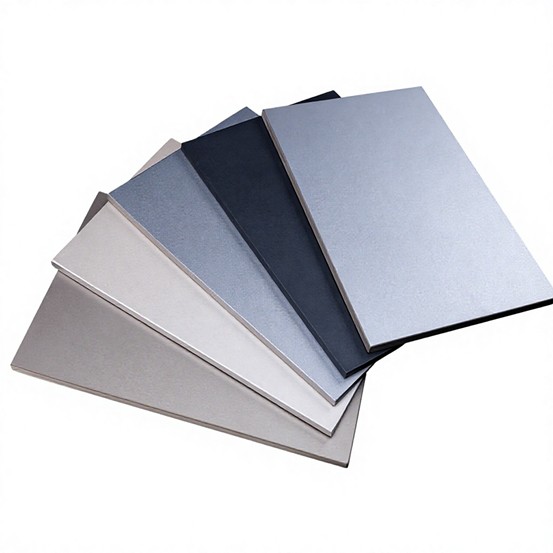

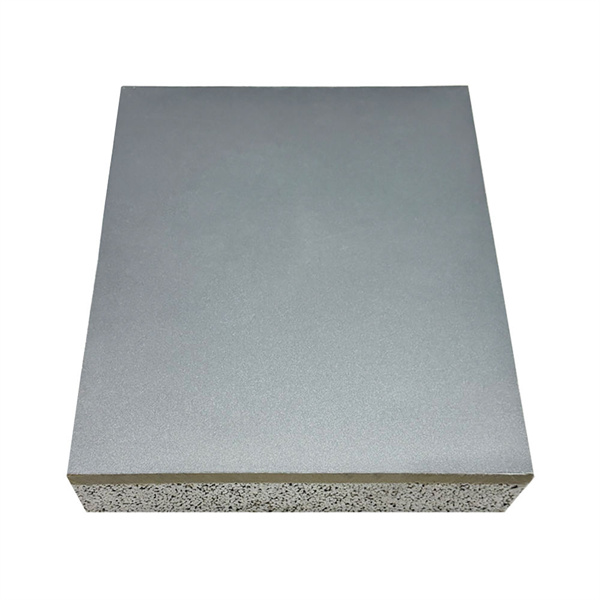

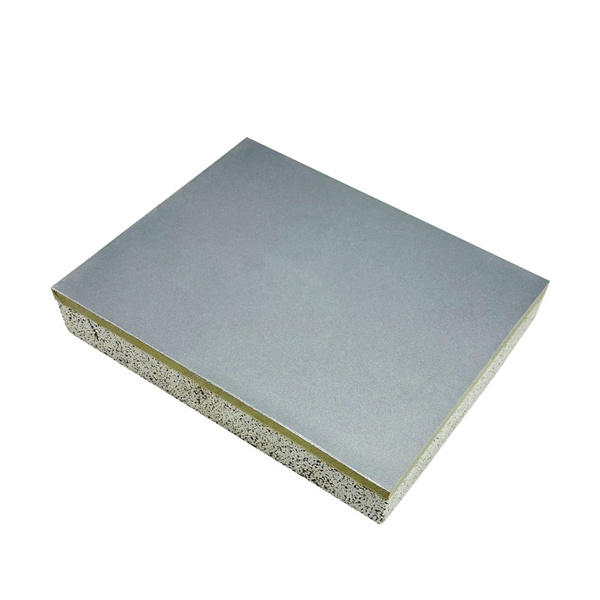

The Metallic Fluorocarbon Paint Thermal Insulation Integrated Panel is a premium factory-fabricated exterior wall solution featuring a high-end metallic fluorocarbon coating finish combined with an integrated thermal insulation core. The metallic surface delivers a sophisticated, high-end appearance with excellent durability, making it an ideal choice for upscale architectural projects.
Product Specifications
| Parameter | Value |
|---|---|
| Standard Dimensions | 2440 × 1220 mm (custom sizes available) |
| Panel Weight | 8 ~ 13 kg/m² |
| Fire Rating | Class A, B1, B2 (depending on insulation core) |
Available Insulation Core Options
- XPS (Extruded Polystyrene)
- EPS (Expanded Polystyrene)
- Rock Wool
- Real Gold Panel (真金板)
- Inorganic Non-Combustible Panel
- Graphite Polystyrene Board (石墨板)
Application Scope
- Office buildings, hotels, apartments, and villas
- Various commercial and residential buildings
- Partition wall panels and suspended ceilings
- Temporary building facade decoration (guard houses, site offices)
- Suitable for both extreme heat and severe cold climate regions
Product Advantages
- Premium Metallic Appearance: Sleek, high-end metallic finish for upscale architecture
- Tough Paint Film: High surface hardness with excellent abrasion resistance
- Superior Hydrophobicity & Oleophobicity: Exceptional self-cleaning performance
- Corrosion & Oxidation Resistant: Long-lasting protection against environmental degradation
- Excellent Gloss & Color Retention: Maintains appearance over extended periods
- Lightweight Structure: Thin profile reduces building structural requirements
- All-in-One Design: Integrated insulation and decoration for efficient construction
Storage
- Store panels flat in a dry, level indoor area. Stack panels according to specifications on wooden pallets, with a maximum stack height of 1.5 meters.
- When panels of different sizes are stored together, place smaller panels on top of larger panels.
- For temporary outdoor storage, cover completely with waterproof tarpaulin to protect from rain and direct sunlight exposure.
Handling
- Panels must be carried by at least two people, holding the panel flat or vertically. Grip the long edges firmly with arms apart, walk steadily, and handle gently.
- Protect the corners and edges from impact. Do not drag panels across surfaces, as this may damage the panel surface.
- If temporarily leaning panels against a wall, do not tilt excessively to prevent panels from slipping and causing damage.
Cutting & Processing
- Always use proper protective equipment when cutting. Fiber cement boards are hard and dense — do not use ordinary woodworking saws. Use appropriate cutting equipment and blades, ensuring the panel is supported flat and secured before cutting from the front side.
- Use a hole saw for circular openings. For square openings, drill a small hole at each of the four corners with an electric drill first, then cut along the four sides to avoid stress cracking.
- For special installation areas such as door and window openings, use multiple square panels to form the required shape rather than cutting the shape directly from a single full board.
Cleaning & Maintenance
- Remove the protective film within 7 days after installation. Use a soft cloth with clean water or a neutral detergent to wipe and clean the surface.
- For stubborn stains such as marker pens or ballpoint pen marks, use alcohol or neutral cleaner on a clean cloth for wiping. Never use strong acids, strong alkalis, or corrosive cleaning agents on the panel surface.
Shipping & Packaging
- Products are packaged on pallets, suitable for long-distance transportation.
- Small-batch orders can be arranged for LTL (Less Than Truckload) freight shipping.
- Large-batch orders can be arranged for dedicated truckload logistics transportation.
